Electro-hydraulic orange peel grab (stone)

  • Details:

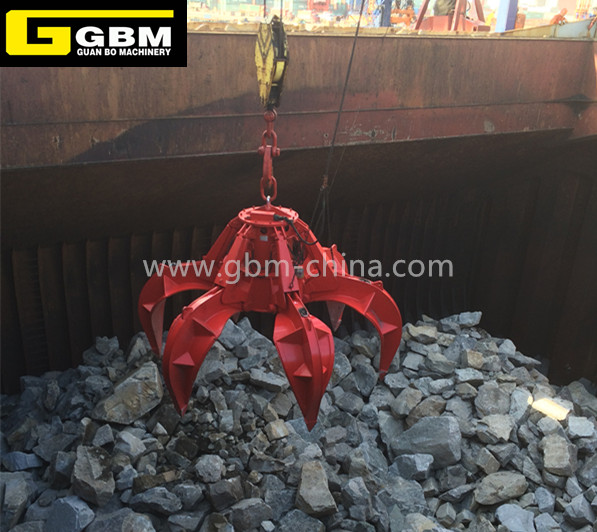

    The electrohydraulic grab is a hydraulic system with a motor,hydraulic pump etc,and is opened and closed by an external power supply. The grab controls the opening and closing of the grab by means of a positive reversal of the motor or a hydraulic reversing valve. Electro-hydraulic oeange peel grab is an effective tool for loading and unloading stones, scrap, garbage, etc. in a variety of harsh environments.The main components of the valve system, seals, valve blocks and other components of the hydraulic system are European and American brands.The pressure change of the system can effectively control the output of the pump. When the maximum pressure is reached, the flow rate of the pump is extremely low, thereby greatly reducing the overflow, reducing the energy consumption, reducing the oil temperature, and using the continuous work for a long time, which greatly improves the production efficiency. Grab structure is simple, easy to operate, can work in a variety of harsh environments. The unique sacral curve is particularly suitable for the loading and unloading of various types of bulk cargo. The upper part of the grab has a cable interface to facilitate the connection with the crane.




    Contact Us



    Model Power Dead weight Total theoretical weight Capacity Maximum working pressure Closing time Jaws Dimensions
    (mm)
    A B C D
    GBM18.5-4000 18.5 3480 6.7 4 180 12 6 3230 2620 2690 4010
    GBM22.0-5000 22 3690 7.7 5 180 12 6 3410 2760 2840 4300
    GBM30.0-6300 30 5150 10.2 6.3 180 15 7 3680 2930 3010 4790
    GBM30.0-8000 30 5560 12 8 180 15 7 3790 3040 3380 5030
    GBM37.0-10000 37 7170 15.2 10 200 17 7 4150 3390 3820 5210
    GBM37.0-12000 37 7490 17.1 12 200 17 7 4320 3540 3960 5360
