Leak-proof grab
 |
Details:

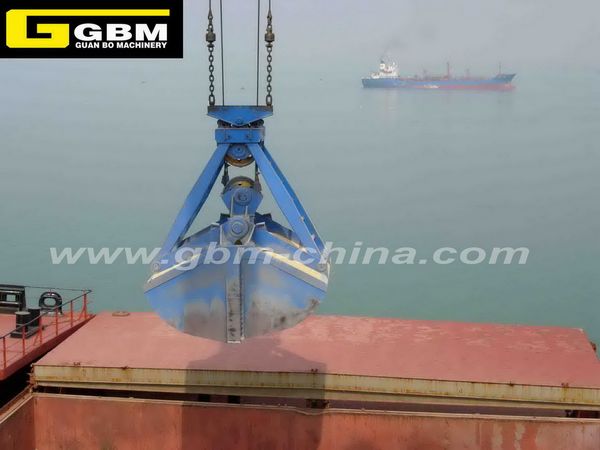

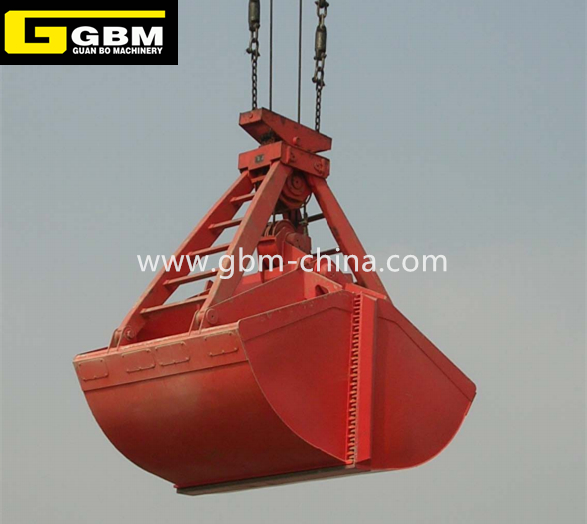

Leak-proof grab is an effective tool for loading and unloading materials in ports, yards and other workplaces. According to the different types of cargo, there are two types of leak-proof grabs, one is a slatted leak-proof, which is used to handle lighter materials such as grain, fertilizer, sulfur, alkali powder, etc., and the other is saw tooth. Anti-leakage is mainly used for grabbing heavy materials that are difficult to grasp, such as iron powder, copper powder and so on.Contact Us
Connection method:
|
capacity(m3) |
4 times |
2.5 |
3.2 |
4.0 |
5.0 |
6.5 |
7.9 |
10.1 |
|
|
5 times |
2.4 |
3.2 |
4.0 |
4.9 |
6.4 |
7.8 |
10.0 |
||
|
pulley |
diameter mm |
355 |
400 |
450 |
500 |
560 |
630 |
630 |
|
|
Wire rope |
diameter mm |
18 |
20 |
22 |
24 |
26 |
28 |
32 |
|
|
length |
4 times |
11.5 |
12.8 |
13.8 |
15.0 |
16.5 |
17.8 |
18.6 |
|
|
5 times |
14.0 |
15.5 |
16.8 |
18.5 |
20.5 |
21.8 |
23.0 |
||
|
stroke |
4 times |
5940 |
6600 |
7100 |
7680 |
8520 |
8920 |
9760 |
|
|
5 times |
7425 |
8250 |
8875 |
9600 |
10650 |
11150 |
12200 |
||
|
Dimensions(mm) |
A |
3080 |
3430 |
3700 |
4010 |
4380 |
4770 |
4990 |
|
|
B |
2600 |
2900 |
3100 |
3350 |
3640 |
4020 |
4120 |
||
|
C |
2220 |
2410 |
2610 |
2850 |
3070 |
3270 |
3530 |
||
|
D |
2540 |
2760 |
2950 |
3160 |
3450 |
3680 |
3910 |
||
|
E |
1800 |
1930 |
2070 |
2220 |
2420 |
2580 |
2730 |
||
|
F |
460 |
600 |
800 |
1000 |
1100 |
1280 |
1280 |
||
|
G |
380 |
430 |
480 |
530 |
590 |
670 |
670 |
||
