timber grab
 |
Details:

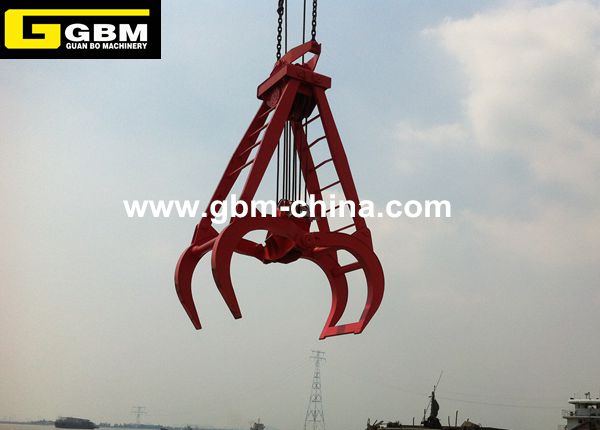

Rope timber grab is use to discharge log for all kinds bridge crane, with characteristics of reasonable structure, convenient operation and safe operation.it is suitable for port, railway, wood processing,timber storage and transportation.the grab has adopt three dimensional virtual Design, and ANSYS software for strength analysis and verification.weight distribution is more reasonable and longer service life.the grabs is suitable for loading and unloading of all kinds of logs with a double winding crane.the grab upper beam is equipped with a touch balance Frame and a lifting chain,which can be directly connected with the lifting rope shackle of the crane. The balance frame can be made into a large balance frame(open and close rope into the lifting rope) or small balance frame(open and close rope Outside of the hoisting tope).It according to the different arrangement of the pulley of crane.
Contact Us
连接方式：
|
型 号 |
额定起重量(t) |
倍率 |
包容(m2) |
自重(t) |
外形尺寸(mm) |
滑轮直径(mm) |
使用高度(m) |
钢丝绳直径(mm) |
||||
|
A |
B |
C |
φD |
E |
||||||||
|
GBM5[1.7]2.2 |
5 |
4 |
1.7 |
2.2 |
1400 |
3467 |
3027 |
215 |
3807 |
400 |
11.5 |
?18.5 |
|
GBM10[2.5]4 |
10 |
4 |
2.5 |
4 |
1800 |
4108 |
3603 |
500 |
4451 |
445 |
14 |
?21.5 |
|
GBM16[1.9]4.4 |
16 |
4 |
1.9 |
4.4 |
2000 |
3475 |
3968 |
600 |
4857 |
650 |
14 |
?28 |
|
GBM25[2.3]6.2 |
25 |
4 |
2.3 |
6.2 |
2000 |
3819 |
4551 |
500 |
5453 |
720 |
14.5 |
?32 |
注: 1.表内参数如有变动,不再另行通知。2.可按用户参数设计制造。
