Electro-hydraulic Clamshell Grab

    • Details:

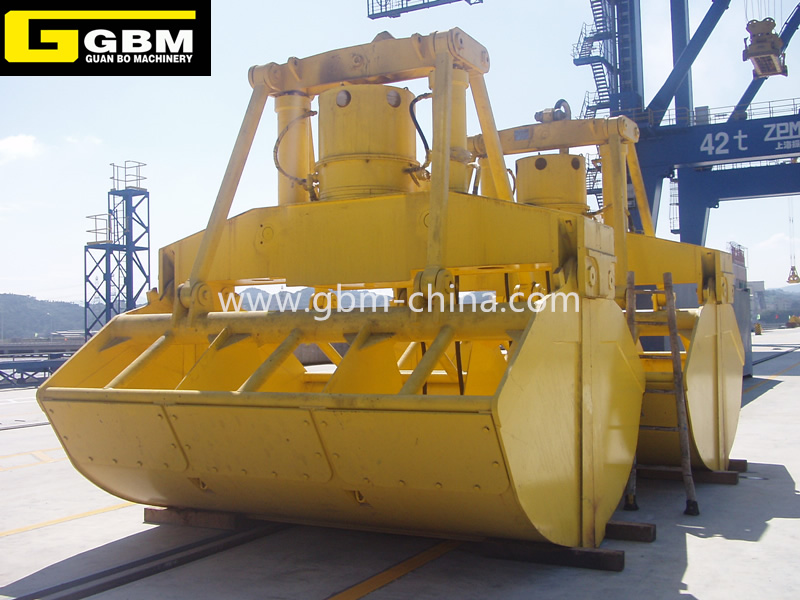

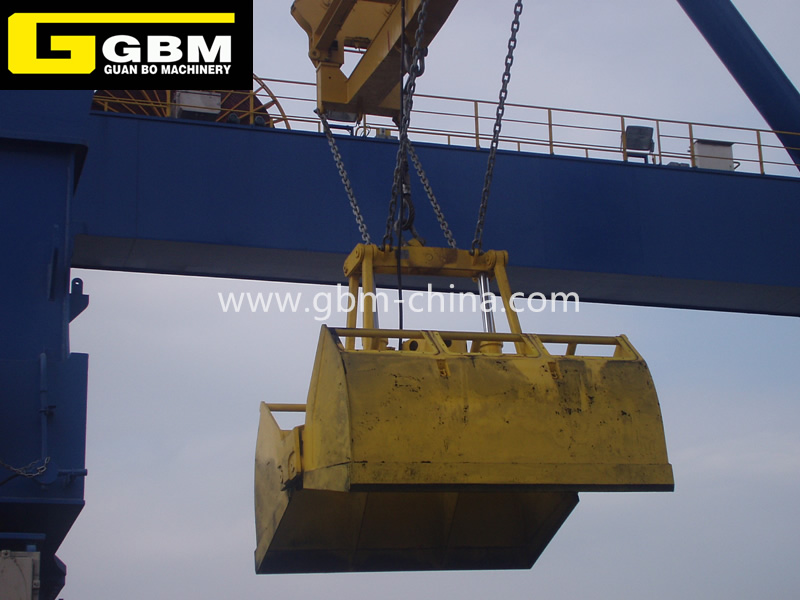

    Electro-hydraulic Clamshell Grabs are suitable for grabbing powdered and granular bulk materials (such as coal, coke, ore, yellow sand, etc.) and are suitable for ports, docks and other occasions. Its advanced system design, combined with imported hydraulic components, makes its performance safe, stable, long life and low maintenance. All hydraulic parts of our company are imported German original products with reliable performance.

    Contact Us



    Model Power Dead weight SWL capacity Max working pressure close time overall dimensions(mm)
    380V50Hz 440V60Hz 380V50Hz 440V60Hz A B C D E
    GBM15.0-3000 15 18 2870 5.3 3 180 11 9 2650 2440 2020 2750 2300
    GBM15.0-4000 3020 6.3 4 180 13 11 2800 2570 2140 2880 2300
    GBM18.5-5000 18.5 22 3670 7.7 5 180 13 11 2980 2740 2300 3080 2500
    GBM18.5-6000 3980 8.8 6 180 18 15 3100 2780 2470 3260 2500
    GBM22.0-7000 22 26 4720 10.4 7 180 18 15 3190 2880 2540 3340 2700
    GBM22.0-8000 5460 11.9 8 200 18 15 3660 3030 2620 3460 2900
    GBM30.0-9000 30 35 6740 14 9 200 18 15 3660 3260 2760 3710 2940
    GBM30.0-10000 7120 15.2 10 200 18 15 3720 3260 2760 3710 3200
    GBM30.0-11000 7520 16.4 11 200 18 15 3920 3280 2860 3890 3200
    GBM37.0-12000 37 44 9060 18.7 12 200 19 16 4030 3590 2960 3910 3500
    GBM37.0-13000 9560 20 13 200 19 16 4090 3620 3050 4010 3500
    GBM37.0-14000 10060 21.3 14 200 19 16 4190 3640 3120 4180 3500
    GBM45.0-15000 45 54 11080 23.1 15 220 19 16 4370 3720 3220 4220 3800
    GBM45.0-16000 11680 24.5 16 220 19 16 4470 4050 3310 4240 3800
    GBM45.0-18000 12820 27.2 18 220 19 16 4600 4120 3400 4390 4000
    GBM55.0-20000 55 66 15980 32 20 220 21 19 4850 4190 3480 4670 4000
    GBM55.0-23000 16860 .35.3 23 220 21 19 4850 4430 3590 4860 4150
    GBM55.0-25000 17780 37.8 25 220 21 19 4850 4430 3590 4830 4500
