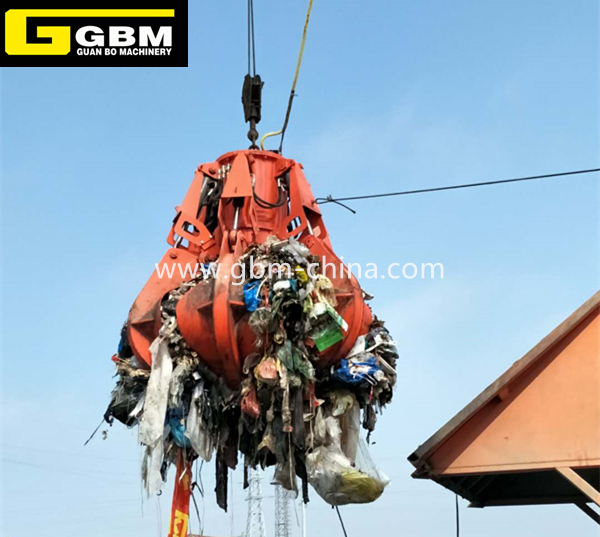

Dock electric hydraulic garbage grab

  • Details:

    Product description and features:
         MMG-3 electrohydraulic multi-claw grabs are mainly used for grabbing heavy-duty bulk cargoes (such as pig iron and heavy scrap steel). They have been widely used in ports, steel mills, and other occasions. They can be used with door machines and vehicles. It is used for various types of lifting equipment.

    > The series of electro-hydraulic multi-cylinder garbage grabs have the following characteristics:
    > Advanced hydraulic control technology can reliably reduce the amount of heat generated by the hydraulic system, and has the requirement of high-strength operation for 24 hours of continuous operation, reducing the failure caused by high temperature of the hydraulic system;
    > Grab light weight, large grab force, can efficiently grab all kinds of rules and irregular materials;
    > Using ABB/Siemens motors and hydraulic components imported from Germany to reliably control the hydraulic system failure rate;
    > The hydraulic control valve block adopts an insert structure, which makes the hydraulic system more compact and easy to maintain;
    > Specially designed bucket teeth greatly increase wear resistance and service life;





    Contact Us


    parameter

    ModelMMG-3

    (380V 50HZ) Dead weight(Kg) capacity(m3) Bucket number Dimensions(mm)
    Power(KW) close time(s) open time(s) semi close full close A B C D E F a b
    MHM15-2500 15 10 5 2360 2660 2.5 5 2520 2115 2240 3245 1350 2960 972 350
    MHM18.5-3200 18.5 12 6 3290 3690 3.2 6 2695 2310 2515 3605 1400 3280 972 350
    MHM18.5-4000 18.5 11.5 7 3390 3810 4 6 2857 2081 2563 3981 1400 3530 972 350
    MHM22-5000 22 11.5 7 3590 4060 5 6 2961 2216 2724 4166 1400 3760 972 350
    MHM30-6300 30 13.5 7.5 4480 5090 6 6 3433 2586 2975 4633 1545 4240 1012 350
    MHM30-8000 30 13.5 7.5 4680 4750 8 6 3522 2578 3198 4932 1545 4510 1012 350
    MHM37-10000 37 19 11 6400 7310 10 6 3867 2811 3480 5408 1620 4830 1033 350
    MHM45-12000 45 17 14.5 6650 7570 12 6 4320 3540 3960 5360 1620 4895 1033 350
