Semi-automatic spreader

  • Details:

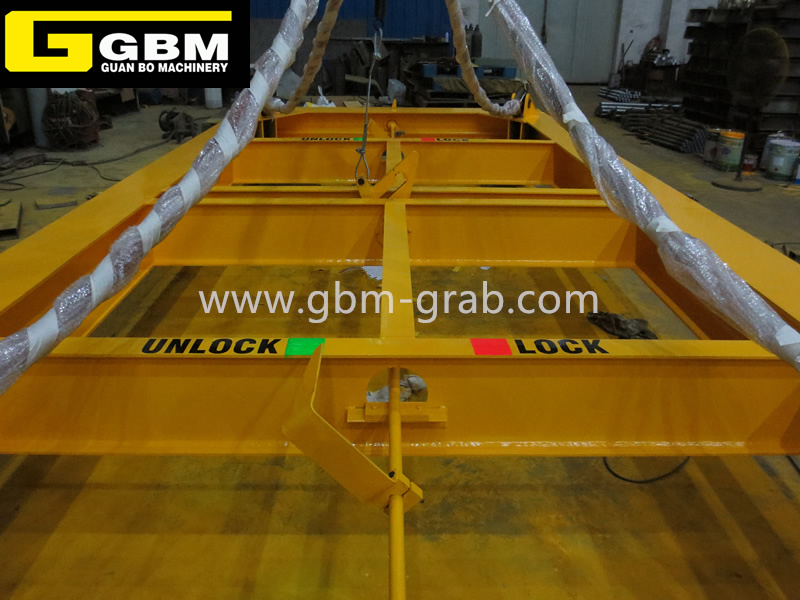

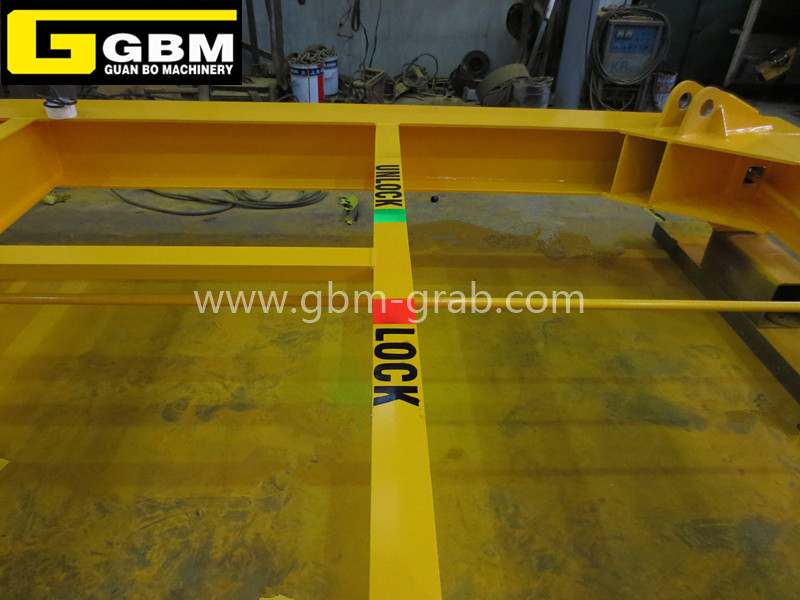

    The semi-automatic spreader series products have advanced the advanced technology of the world finest lanyard spreaders in the structural industry and the spinlock transmission mechanism, combined with the current production characteristics of international container companies, and the most stable cranes that have been carefully developed and verified through years of use. The tool is the best accessory for hook-type cranes. The semi-automatic series spreader fully embodies the professional quality of sturdiness, durability and maintenance-free. The global port and railway operation area has been widely recognized. The fixed spreader is a semi-automatic cable spreader that is fixed to a crane by a hook and is used to lift a standard 40 feet 20 feet container. This product does not require power supply or upgrading of the crane control circuit. The spreader is fully mechanical without any electrical or hydraulic components. The crane has a mechanical automatic opening and closing lock function. The twist lock is provided with an opening/closing lock indicating device on a spreader mechanically controlled by a pull wire rope, and a crane worker is not required to help the hitch/unhook. The ground worker can determine the lock status of the rotary lock by the direction of the hand. The installation is simple and convenient, which greatly saves the conversion time from lifting the hook to lifting the container.




    Contact Us


    Suitable for operating ISO standard 20 feet container

    Suitable for operating ISO standard 20 feet 40feet container

    Rated lifting weight

    35T

    Rated lifting weight

    35T

    Dead weight

    2.2T

    Dead weight

    4.6T

    Allowed load eccentricity

    ±10%

    Allowed load eccentricity

    ±10%

    Flexible cable travel

    100mm

    Flexible cable travel

    100mm

    Ambient temperature

    -20℃+45℃

    Ambient temperature

    -20℃+45℃

    Twistlock mode

    ISO floating transfer, automatic elastic cable drive

    Twistlock mode

    ISO floating transfer, automatic elastic cable drive

    Guide device

    Fixed guide plate, no power device

    Guide device

    Fixed guide plate, no power device

    Application

    Portal cranes, gantry cranes, cranes in the building

    Application

    Portal cranes, gantry cranes, cranes in the building
