Overheight spreader
 |
Details:

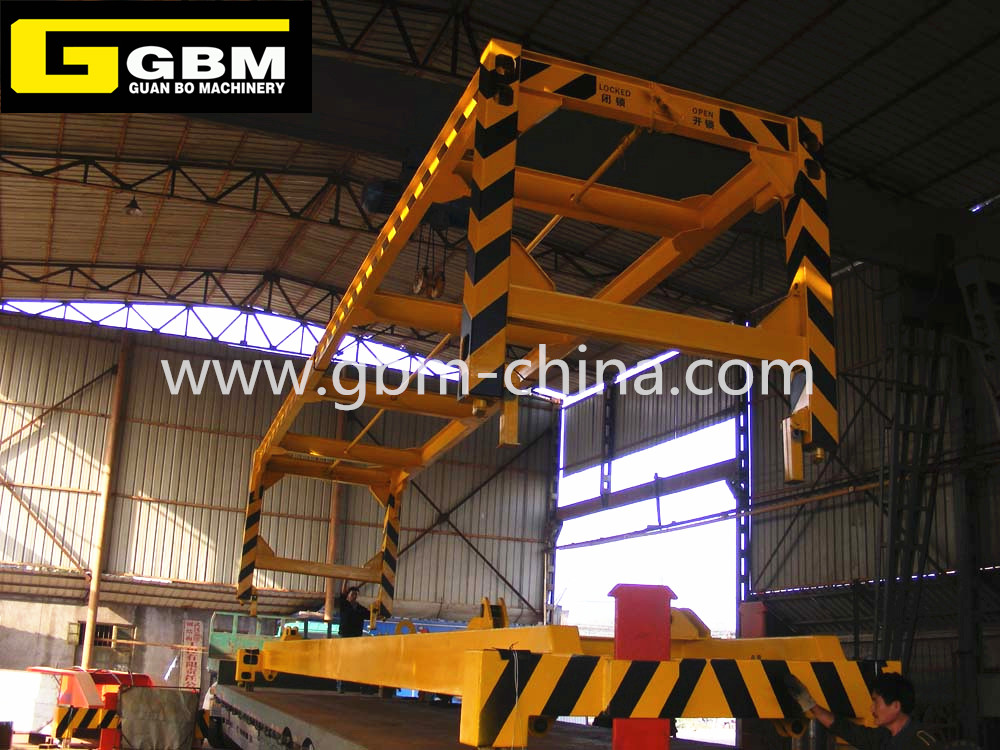

The overhead crane spreader is used for loading and unloading the ISO standard container with open top and the gantry for ultra high cargo.it is also used for loading and unloading the pallet, which must meet the pallet of the interface of the ISO standard 20 ft container. The connection and separation of the superlift and the spreader are completed by the re export of the spreader.the open and close locking action of the overhigh transfer pin is controlled manually by a person.Contact Us
| Suitable for operating standard 20ft containers | Suitable for operating standard 40ft containers | ||
| Rated lifting weight | 41T | Rated lifting weight | 50T |
| Dead wight | 2.8t | Dead weight | 3.5t |
| effective height | 1800mm | effective height | 1800mm |
| Application | It is applied to the loading and unloading of ISO standard containers with open tops and gantry for ultra high goods.it is also used for loading and unloading pallets, which must meet the pallets of the ISO standard 20ft container interface. | Application | It is applied to the loading and unloading of ISO standard containers with open tops and gantry for ultra high goods. it is also used for loading and unloading pallets, which must meet the pallets of the ISO standard 40ft container interface. |
| Drive | The connection and separation of the overhead frame and the spreader are completed by the reshipment of the spreader. the open closed lock of the overhead frame is manually controlled by a person. | Drive | The connection and separation of the overhead frame and the spreader are completed by the reshipment of the spreader. the open closed lock of the overhead frame is manually controlled by a person. |
