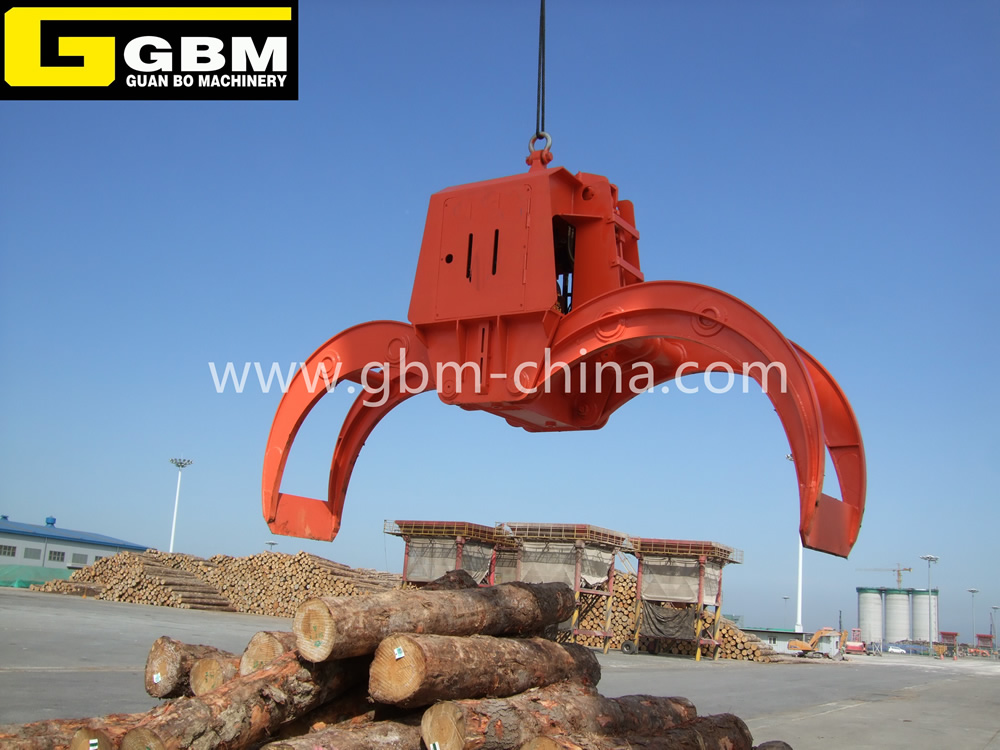

electric hydraulic timber grab
 |
Details:
Product:electric hydraulic timber grab.

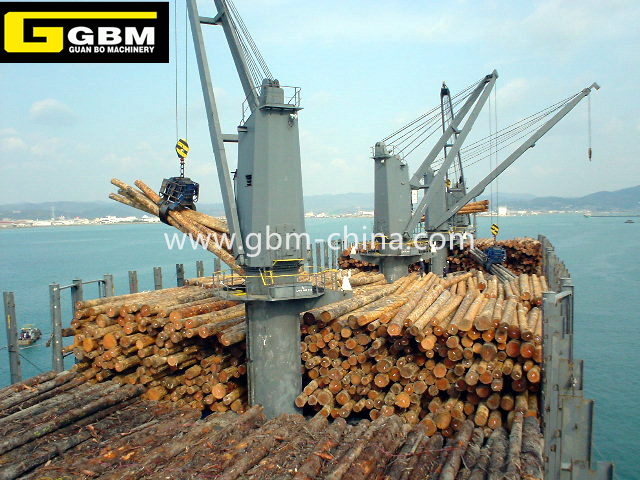

Suitable industry:port,dock, ship,forest farm,timber storage yard.
Use:use to load and discharge log.
Suitable log:diameter less than 2
M
Producet specification: clamshell grab,grab capacity: 0.8 m3～30m3.grab ability: 1.5T～50T.motor power: 7.5Kw～55Kw.
Advantage:
1.reduce the faults caused by high temperature of hydraulic system.
2. grasping force is large, can efficiently grasp all kinds of
rules,irregular materials
3. hydraulic control block
is insert structure, easy maintenance
4.special design of bucket teeth,
greatly increase wear resistance and service life
Contact Us
|
TYPE（MHL） |
power（kw） |
Weight (Kg) |
SWL(t) |
Volume (m3) |
Max.working press (bar) |
Close time(s) |
Overall size（mm） |
|||||||
|
380V50Hz |
440V60Hz |
380V50Hz |
440V60Hz |
A |
B |
C |
D |
E |
F |
|||||
|
MHL5.5-400 |
5.5 |
6.3 |
680 |
3.2 |
0.4 |
120 |
7 |
5 |
1750 |
1620 |
1020 |
1360 |
620 |
700 |
|
MHL7.5-500 |
7.5 |
8.6 |
890 |
4.0 |
0.5 |
160 |
8 |
6 |
2060 |
1860 |
1320 |
1640 |
780 |
800 |
|
MHL11.0-630 |
11.0 |
12.5 |
1270 |
5.0 |
0.63 |
160 |
10 |
8 |
2380 |
2070 |
1620 |
1960 |
1000 |
900 |
|
MHL11.0-800 |
1360 |
6.3 |
0.8 |
160 |
12 |
10 |
2630 |
2330 |
1780 |
2210 |
1200 |
1000 |
||
|
MHL15.0-1250 |
15.0 |
18.0 |
2210 |
8.0 |
1.25 |
180 |
15 |
12 |
3180 |
2710 |
2360 |
2860 |
1400 |
1250 |
|
MHL18.5-1600 |
18.5 |
22.0 |
2480 |
8.0 |
1.6 |
180 |
15 |
12 |
3480 |
2950 |
2640 |
3210 |
1400 |
1430 |
|
MHL22.0-2000 |
22.0 |
26.0 |
3460 |
10.0 |
2.0 |
200 |
14 |
11 |
3890 |
3270 |
3040 |
3680 |
1600 |
1600 |
|
MHL22.0-2500 |
4540 |
12.5 |
2.5 |
200 |
16 |
13 |
4240 |
3570 |
3330 |
3990 |
1800 |
1780 |
||
|
MHL30.0-3200 |
30.0 |
35.0 |
5730 |
16.0 |
3.2 |
200 |
17 |
14 |
4480 |
3820 |
3690 |
4350 |
1800 |
1960 |
