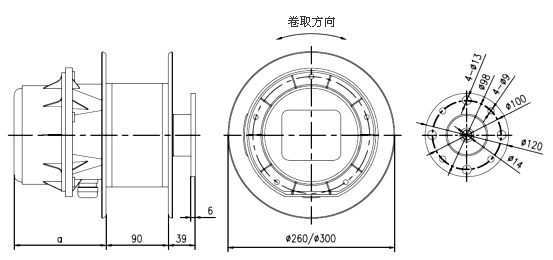

S15H series spring drive reel

Details:

Technical Parameters:

Materials and construction: The drum body and the mounting flange are made of steel. Spring for high life grade spring steel.
Winding speed: horizontal winding 63m / min vertical winding 30m / min;
Coiling length: horizontal maximum winding length: 15 meters, vertical maximum winding length of 6 meters;
Cable parameters: diameter Max 15mm, weight Max 0.33kg / m ;
Electrical parameters: Vmax 500V, Imax 20A;
Protection class: IP54;
