Vehicle electro weighing system

    • Details:

    Features
    1, exclusive CS high-end weighing technology, more accurate.
    2, exquisite manufacturing process, automatic welding, scale platform anti-rotation anti-torsion and lateral force, durable and more reliable.
    3, with unattended use of the system, more comprehensive anti-cheating, data reports to facilitate printing.
    4, professional engineering team tailored system solutions, more in line with personal needs.

    working environment:
    Instrument temperature range: -10 °C ~ +45 °C
    Sensor temperature range: -40°C to +65°C
    Relative humidity: ≤ 95%
    Working voltage: 220V±10%, frequency 50Hz

    Contact Us

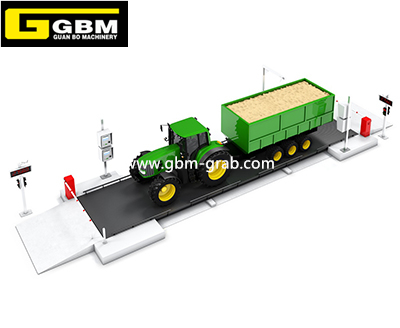

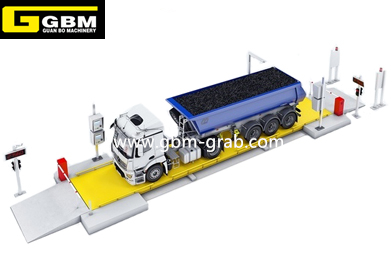

    1. Infrared light curtain

    2. Vehicle traffic signal
    3. Vehicle barrier system
    4 pounds (a variety of sizes available)
    5. Vehicle monitoring camera above
    6. Weighing system
    7. Import weighing sensor
    8. End the sensor
    9. Touch screen terminal
    10. License plate recognizer
    11. Vehicles ramp up and down

    12. Large screen



    Specific parameters:

    ■ Working temperature: weighing platform: -30 °C ~ +70 °C Instrument: -5 °C ~ 50 °C;

    ■ Power supply: Built-in high-capacity battery and on-board charging, charging can be detected hundreds of times;
    ■ Maximum weighing (single axis): 5T 10T 15T 20T;
    ■ Weight plate size: 400*300*58mm, 400*500*58mm, 700*450*58mm, 500*900*58mm;
    ■ Weighing accuracy: static: +0.1-0.3% F.S.; dynamic: +1-3%F.S;
    ■ Sensor structure: traditional shear beam sensor;
    ■ Cable length: Each plate is equipped with 2 weighing plates as standard, the cable length is 8m and 10m (optionally longer);

    ■ Indexing value: 0.5kg, 1kg, 2kg, 5kg, 10kg, 20kg, 50kg


    Specific parameters:
    Static accuracy rating: OIML III
    Static weighing accuracy: 0.1%
    Dynamic weighing accuracy: 2-6% related to weighing speed
    Weighing platform stiffness: better than 1/1000
    Safe overload: ≧150%
    Extreme overload: ≧250%

    Scale body structure: modular structure


    Sensor parameters:
    Comprehensive accuracy: OIML C3
    Creep (30 minutes): ±0.013% F.S
    Nonlinearity: ±0.010% F.S
    Lightning protection capability: 10000A (maximum test index)
    Maximum limit overload: 300% F.S
    Instrument parameters:
    Accuracy rating: in line with OIMLR76, GB/T7723-2008 GB III
    Display division value: 1/2/5/10/20/50/100 optional
    Sensitivity: 1/100 million
    Baud rate: 600 to 4800 optional
    Temperature drift: ≤50ppm/°C
    Relative humidity: ≤85%R.H
    Nonlinear error: ≤0.005%F.S, including non-linear automatic correction software
    Input signal range: RS485, RS232 or 4-20mA current loop interface
