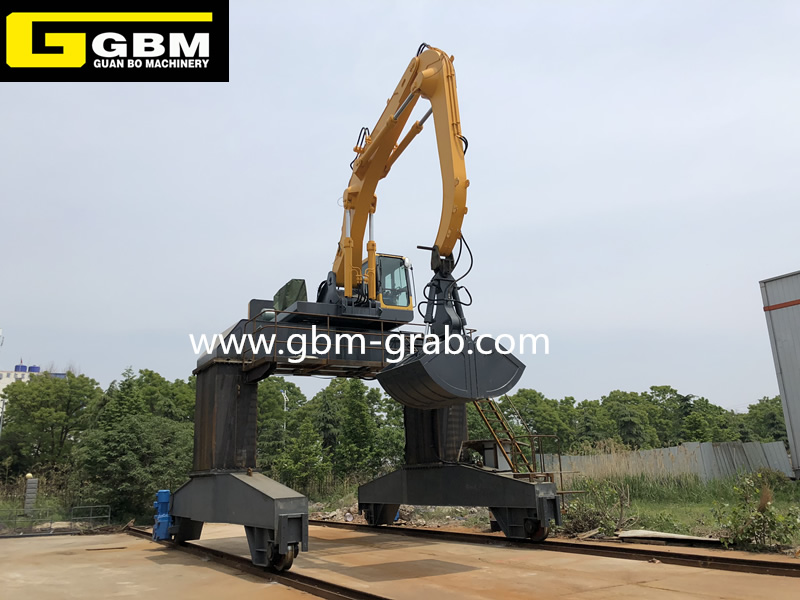

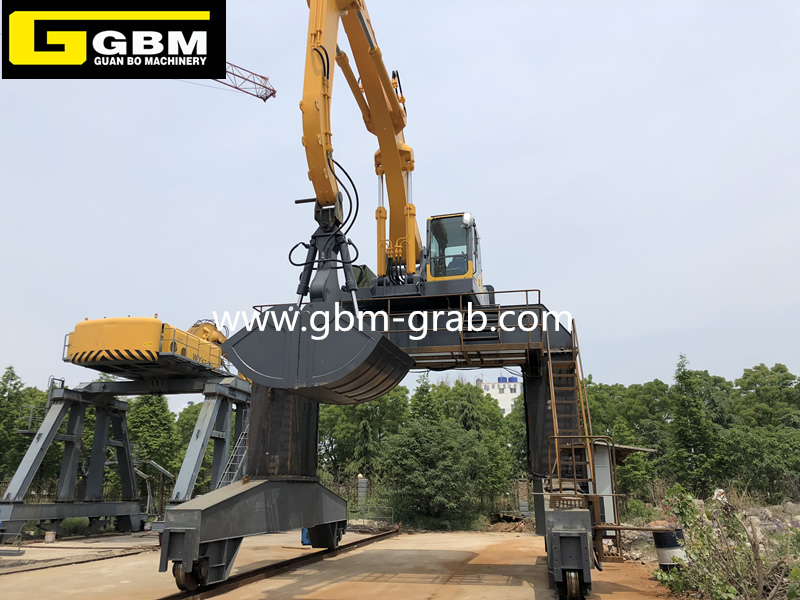

Rail type material handler
 |
Details:
The 140tm Rail type material handler developed by GBM can be equipped with 5-6 cubic meters of sand stone, coal grab bucket, 2.5 cubic plum big stone, scrap steel grab .
A work cycle of about 35 to 40 seconds is completed, which is more than twice as efficient as the existing soft rope track crane. Suitable for 2000-5000 tons of ship operations; can be modified on the original crane; the operation line can see the ship's warehouse; the maximum lifting weight is 20 tons at 7 meters radius; there are many types of grippers that can be replaced (you need to match any grabs can be customized ).
Contact Us
The dimensions
Gauge: 6m
Base distance (center distance between two wheels on the same side): 7.8m
Door clearance headroom (distance from the plane on the track to the bottom plane of the beam): 5.3m
Maximum gyration radius of the tail: 3.8m
Dynamic parameter
Maximum motor power: 110kw
Quality parameter
Machine quality: 46.5t
Performance parameter

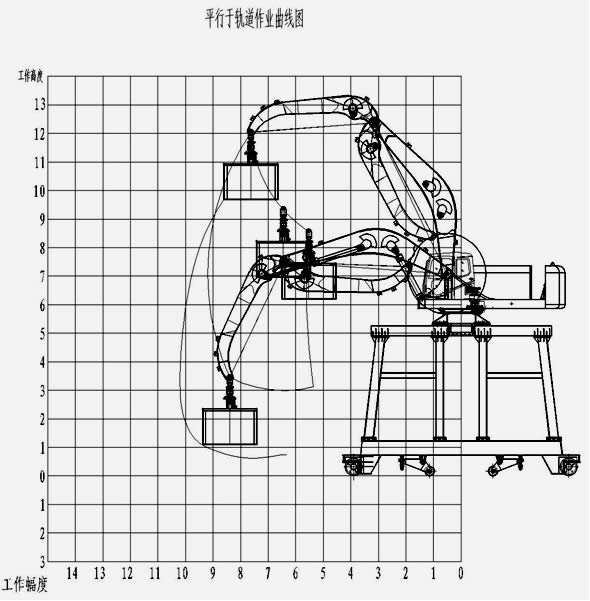

Maximum working range: 8m
Rated lifting capacity at maximum working range (including attachment weight): 7t
Maximum wheel pressure: 245kn
Maximum lifting torque: 560kn/m
Working height: 8m
Maximum working depth: 0.5m
Travel speed (no load): 0 ~ 400mm / s
Maximum turning speed (no load): 6r/min
